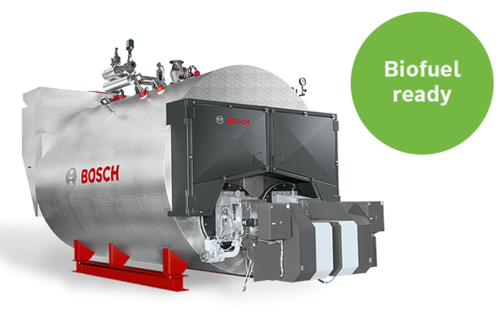

The ZFR is a highly efficient double-flame tube boiler with a three-pass design for 18,000 to 55,000 kg/h of steam at up to 30 bar. Two independent firing units and flue gas paths offer very high flexibility thanks to a doubled modulation range.
The ZFR is known for its high efficiency at each output stage. Combining with an integrated economiser further increases the efficiency. An optional condensing heat exchanger for the residual waste heat also reduces the fuel demand. Extremely low emissions (to below 50 mg NOx) are possible thanks to the large furnace.

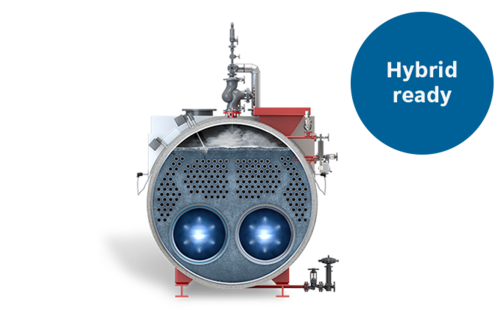

The boiler’s flue gas paths and firing units are completely separate from one another. This doubles the modulation range and protects the burner through continuous operation as well as significantly lower activation and deactivation cycles. The ZFR reliably meets dynamic output requirements and generates process heat highly efficiently, even in partial load areas.
The boiler is individually configured, produced and equipped for your specific application. You receive a complete system with coordinated equipment, effective heat insulation and pre-configured control. The optional superheater module makes the ZFR-X suitable for superheated steam generation for large industry or power plants.

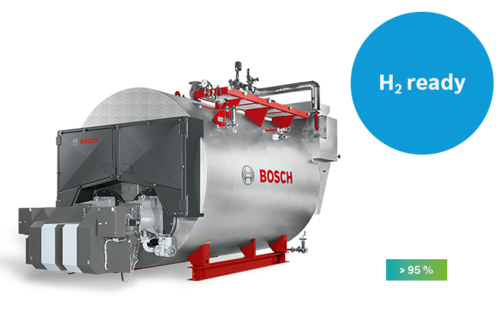

The ZFR can be used individually with various fuel types and sustainably reduces emissions in its low-NOx version. It can also operate with hydrogen, biogas or bio-oil, or as a hybrid using green electricity. The CO2-neutral fuel design can be implemented either at the factory or later for retrofitting.
The Bosch BCO and SCO boiler controls include intelligent control features for fully-automated boiler operation and easy connection to your process control system. An optional digital efficiency assistant and protected remote access are available for seamless Industry 4.0 integration.
The ZFR is known for its high efficiency at each output stage. Combining with an integrated economiser further increases the efficiency. An optional condensing heat exchanger for the residual waste heat also reduces the fuel demand. Extremely low emissions (to below 50 mg NOx) are possible thanks to the large furnace.
The boiler’s flue gas paths and firing units are completely separate from one another. This doubles the modulation range and protects the burner through continuous operation as well as significantly lower activation and deactivation cycles. The ZFR reliably meets dynamic output requirements and generates process heat highly efficiently, even in partial load areas.
The boiler is individually configured, produced and equipped for your specific application. You receive a complete system with coordinated equipment, effective heat insulation and pre-configured control. The optional superheater module makes the ZFR-X suitable for superheated steam generation for large industry or power plants.
The ZFR can be used individually with various fuel types and sustainably reduces emissions in its low-NOx version. It can also operate with hydrogen, biogas or bio-oil, or as a hybrid using green electricity. The CO2-neutral fuel design can be implemented either at the factory or later for retrofitting.
The Bosch BCO and SCO boiler controls include intelligent control features for fully-automated boiler operation and easy connection to your process control system. An optional digital efficiency assistant and protected remote access are available for seamless Industry 4.0 integration.
ZFR | ZFR-X | |
Modal | ZFR | ZFR-X |
Heat transfer medium | High-pressure sturated steam | High-pressure superheated steam |
Design | Three-pass double-flame tube/smoke tube technology | Three-pass double-flame tube/smoke tube technology |
Output | 18,000 to 55,000 kg/h | 18,000 to 55,000 kg/h |
Safety Pressure | Upto 30 bar | Upto 30 bar |
Max-temprature | Upto 235 °C | Upto 300 °C |
Fuel | Gas, oil, bio gas, bio oil, hydrogen | Gas, oil, bio gas, bio oil, hydrogen |
